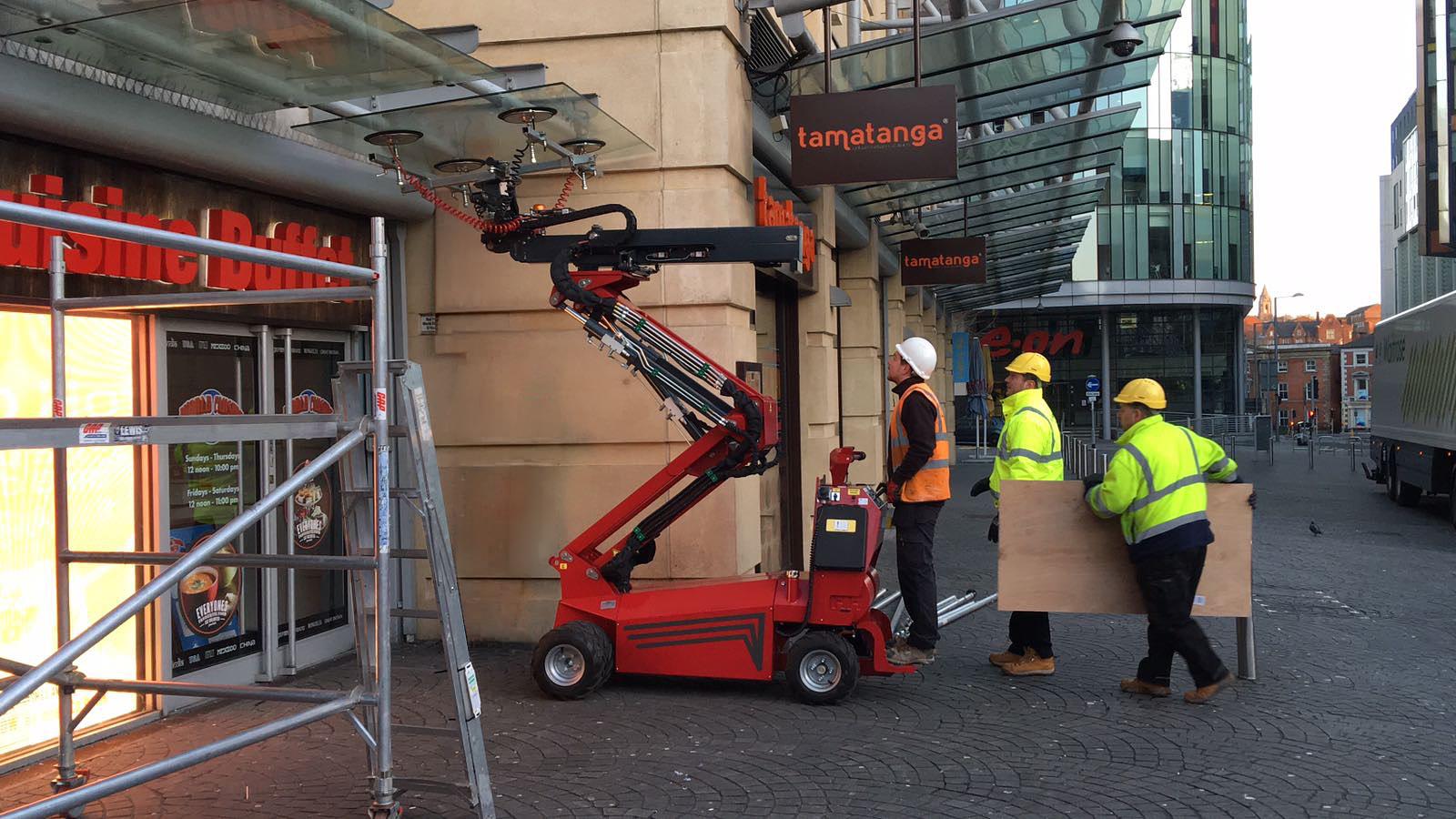

Every glazer has faced this job: a canopy installation with no room to swing a crane, a stairwell atrium with a two-metre access gap, or a retail unit where the only route to the install point is through a loading bay barely wider than the panel itself. On these jobs, standard lifting equipment simply doesn't fit, and that's exactly the gap glazing robots were built to close.

The Problem With Confined-Space Glazing

Canopy glazing and tight-access installs create a specific set of issues:

• No overhead crane access, because the canopy structure or building overhang blocks the sightline
• Narrow approach routes - doorways, scaffolding gaps, or site boundaries that rule out larger plant
• Awkward lift angles, since canopy glass often needs to go in at a tilt, not straight up
• Uneven or unfinished ground, common on active sites before final surfacing is laid
• Panel weights that are too much for manual handling but too awkward for a standard vacuum lifter alone

A glazing robot solves all five at once, which is why they've become the default choice for canopy work and confined installs rather than a specialist add-on.

Why the Geometry of a Glazing Robot Works Here

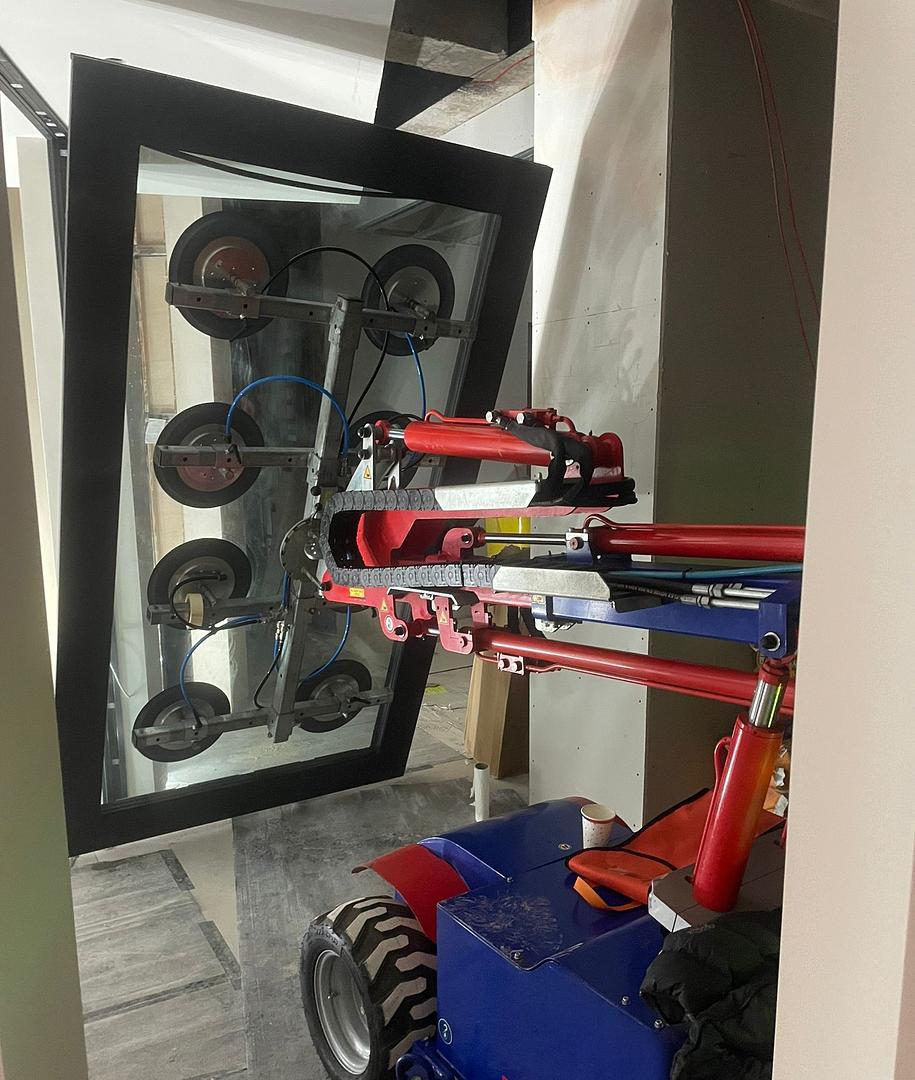

Unlike a crane or a boom lift, a glazing robot is built around powered tilting and side-shift as core functions, not accessories. That means once the panel is lifted, the operator can angle it precisely to match a sloped canopy or an awkward reveal without repositioning the whole machine, critical when there's only centimetres of clearance either side.

Built-in wheels give controlled, low-speed travel through tight site routes, while solid tyres mean the machine can cross rough or part-finished ground without needing a smooth floor first - a common issue on canopy jobs, which often happen early in a build before external areas are finished.

Matching Capacity to the Job

Confined-space and canopy panels vary hugely in size, so capacity matters more here than on open, ground-floor glazing. Current used stock spans a wide range:

• Oscar 180 - 180kg capacity, ideal for smaller canopy sections or narrow-access domestic and light commercial glazing
• Geko 250 PV - 250kg, a solid mid-size option for tight installation runs
• Oscar 280 / Geko 350 - 280–350kg, well suited to standard canopy panels and confined stairwell or atrium glazing
• Cobra 550 - 550kg, for larger panels where access is still restricted
• Oscar 800 Offroad - 800kg with an off-road-capable chassis, built specifically for sites where the ground isn't finished yet
• Oscar 1000 Plus - up to 1000kg, for heavier canopy and facade panels that still need to travel through restricted routes

Choosing a robot with more capacity than the job strictly needs isn't just about the panel weight, it also affects manoeuvrability. A machine sized correctly for the job will fit through tighter gaps and turn in smaller spaces than an oversized unit brought in "just in case."

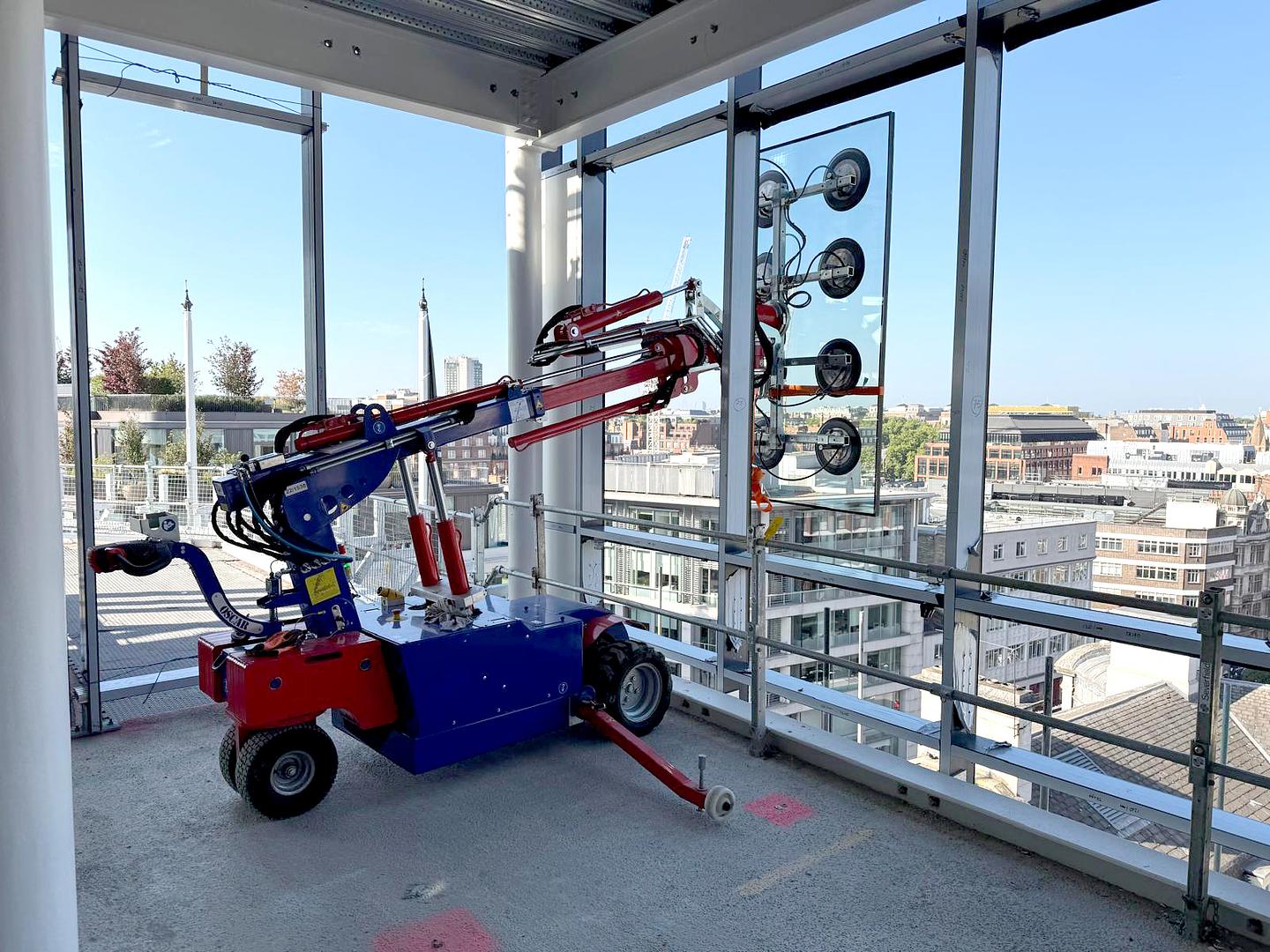

Boom Extension: Reaching Over, Not Just Up

Many canopy jobs need the panel to travel outward as much as upward, over a walkway, past a structural beam, or across an entrance. Optional powered boom extensions, available on several of our glazing robot models, let the machine reach that extra distance without repositioning, which matters when the base unit itself has limited room to move.

Buying Used for Project-Based Confined-Space Work

If canopy or confined-space glazing is a recurring part of your work but not a daily occurrence, a used glazing robot is usually the better financial call than buying new or hiring repeatedly. You get:

• A machine already proven on real installs, not a showroom unit
• Lower capital cost, freeing up budget for the access equipment or scaffolding these jobs often also require
• The ability to keep the machine on standby for the next tight-access job, rather than re-hiring each time

Current Stock Suited to Tight-Access Work

We currently have Geko and Oscar glazing robots in stock across the 180kg–1000kg+ range. Full details, including year, serial number, and application type, are listed.

Browse our current used glazing robots, or view the full listings page for everything in stock.

Not sure which capacity suits your next canopy or confined-space job? Call 0161 683 2584 or email info@usedliftingproducts.com - we can talk through the access constraints and panel weights with you directly.
