2020 Geko 500 3D Head

2020 Geko 500 3D Head
Description

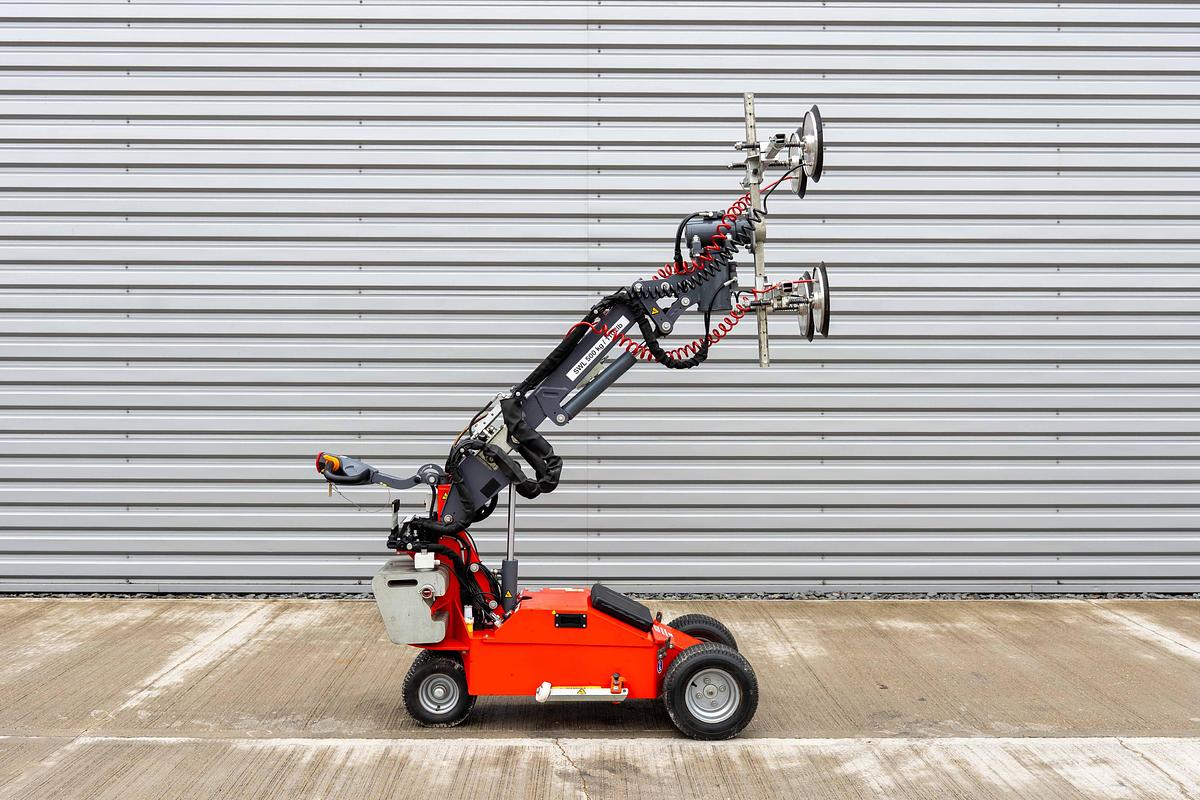

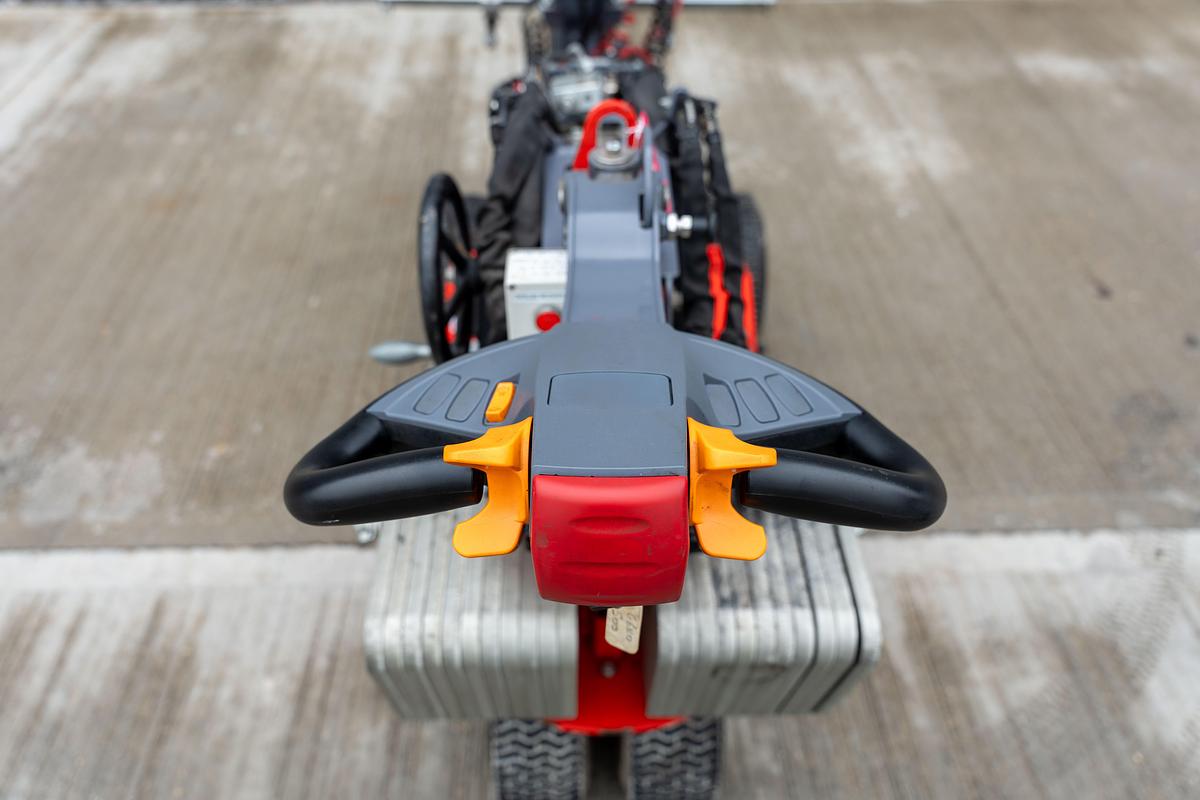

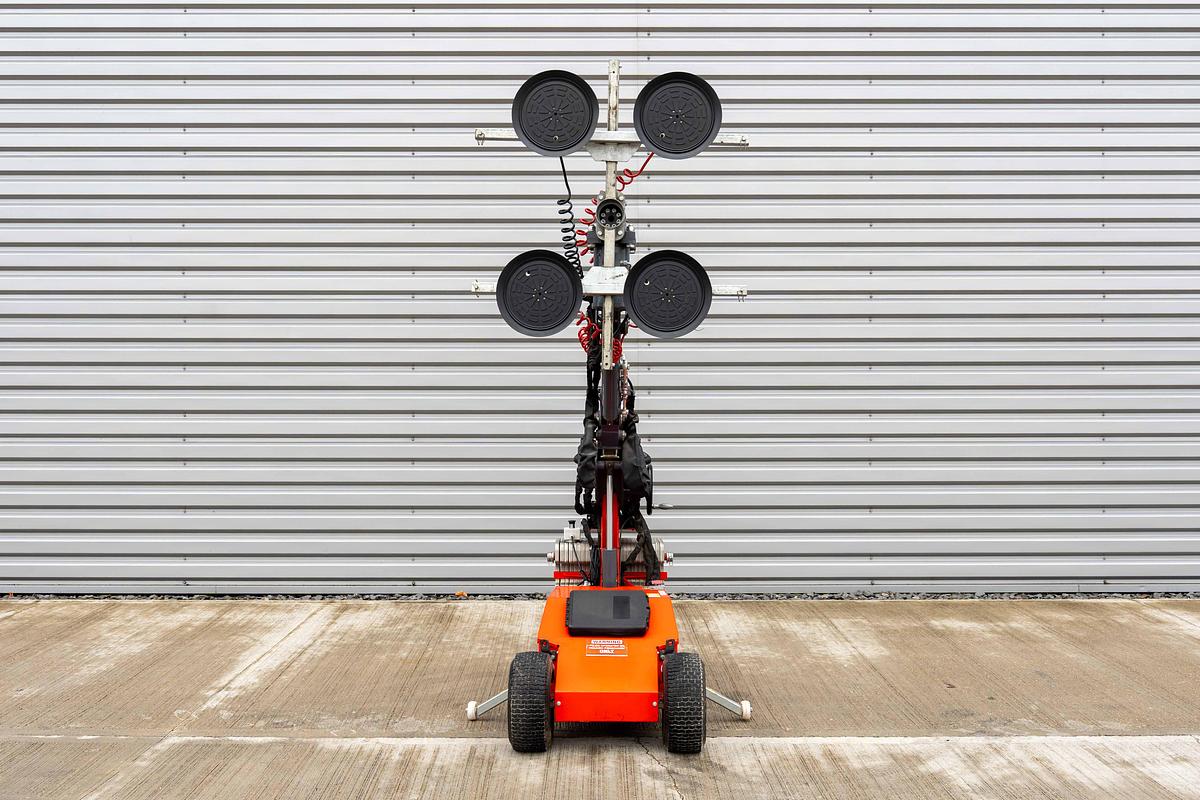

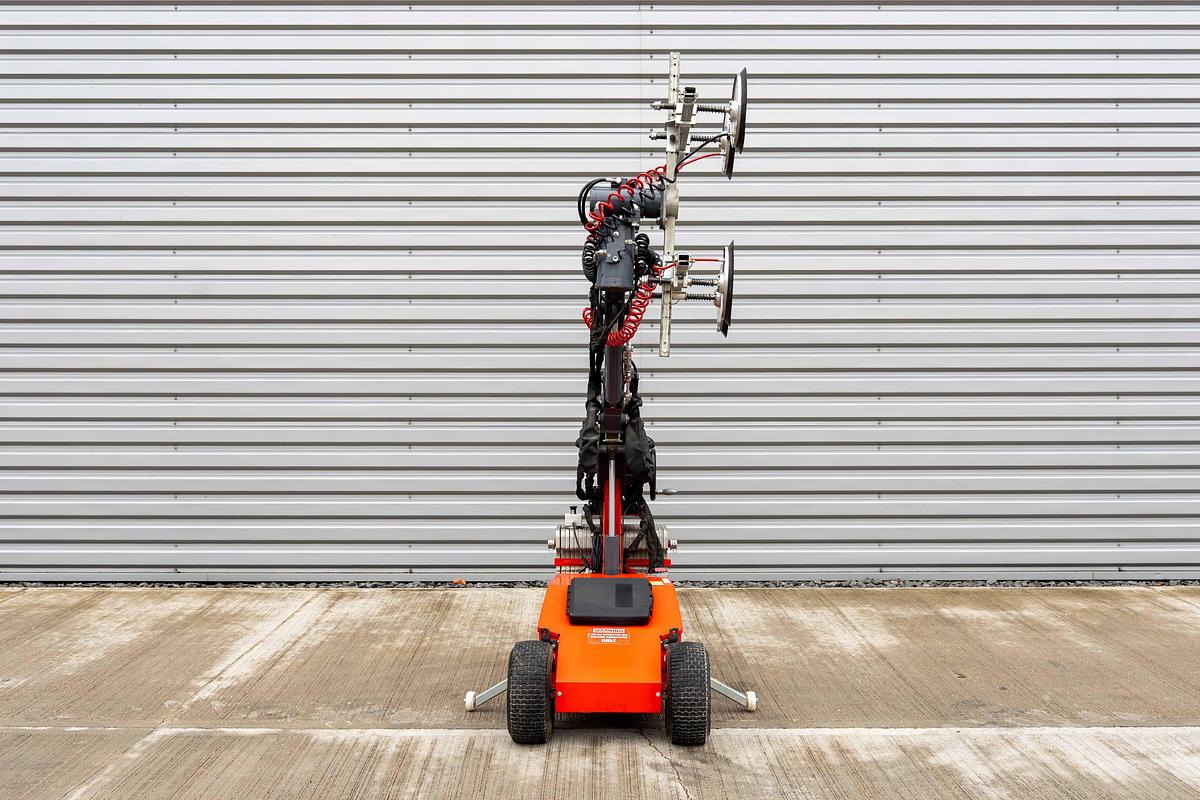

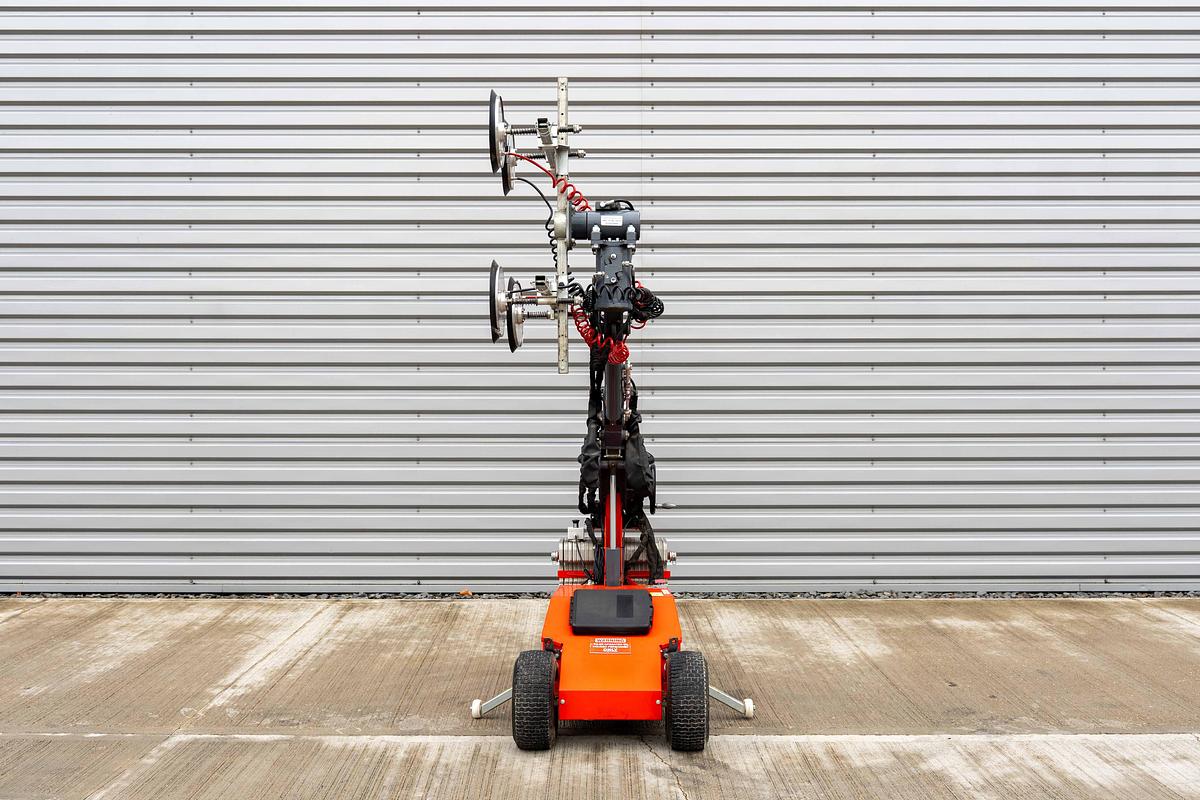

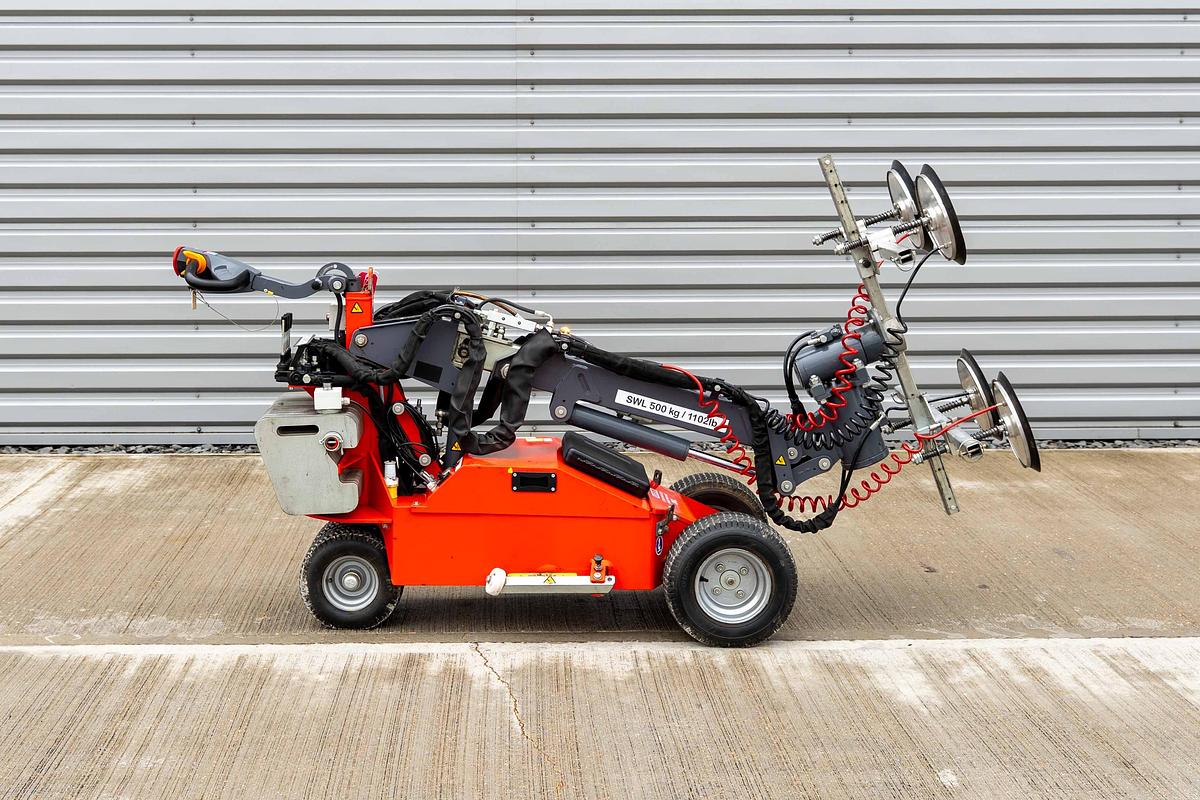

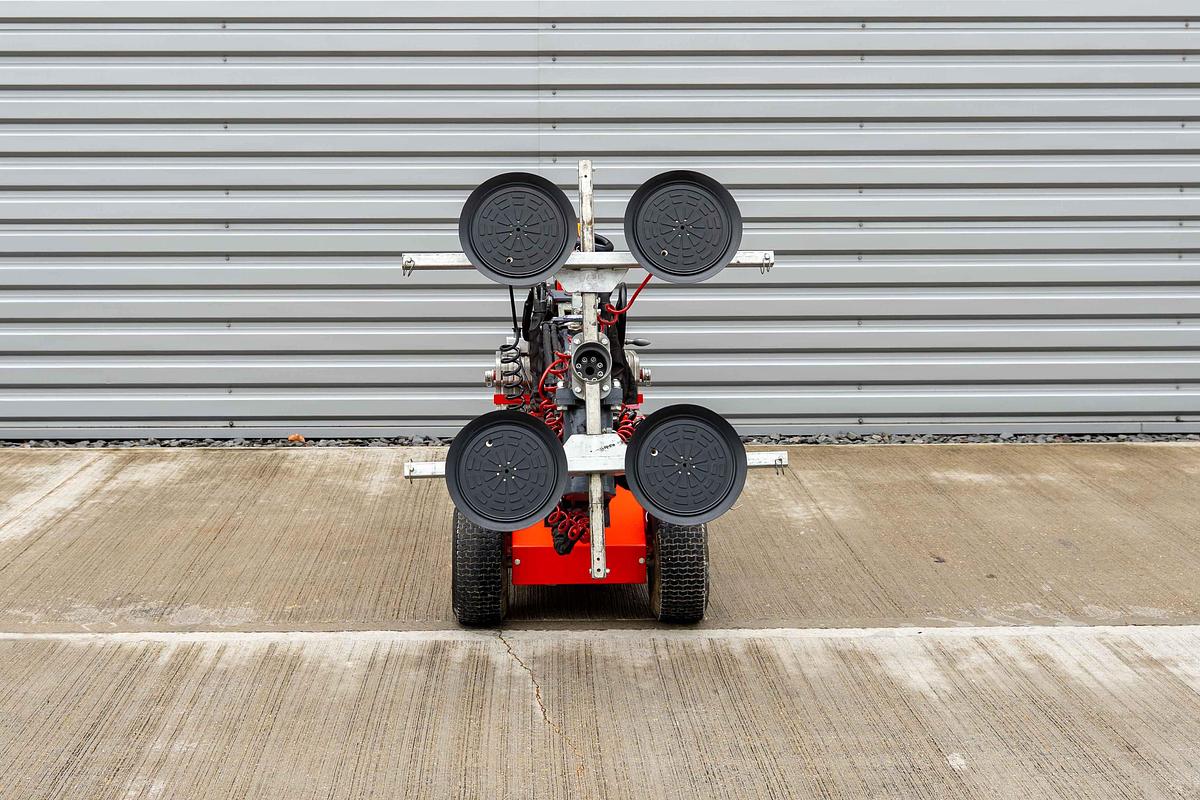

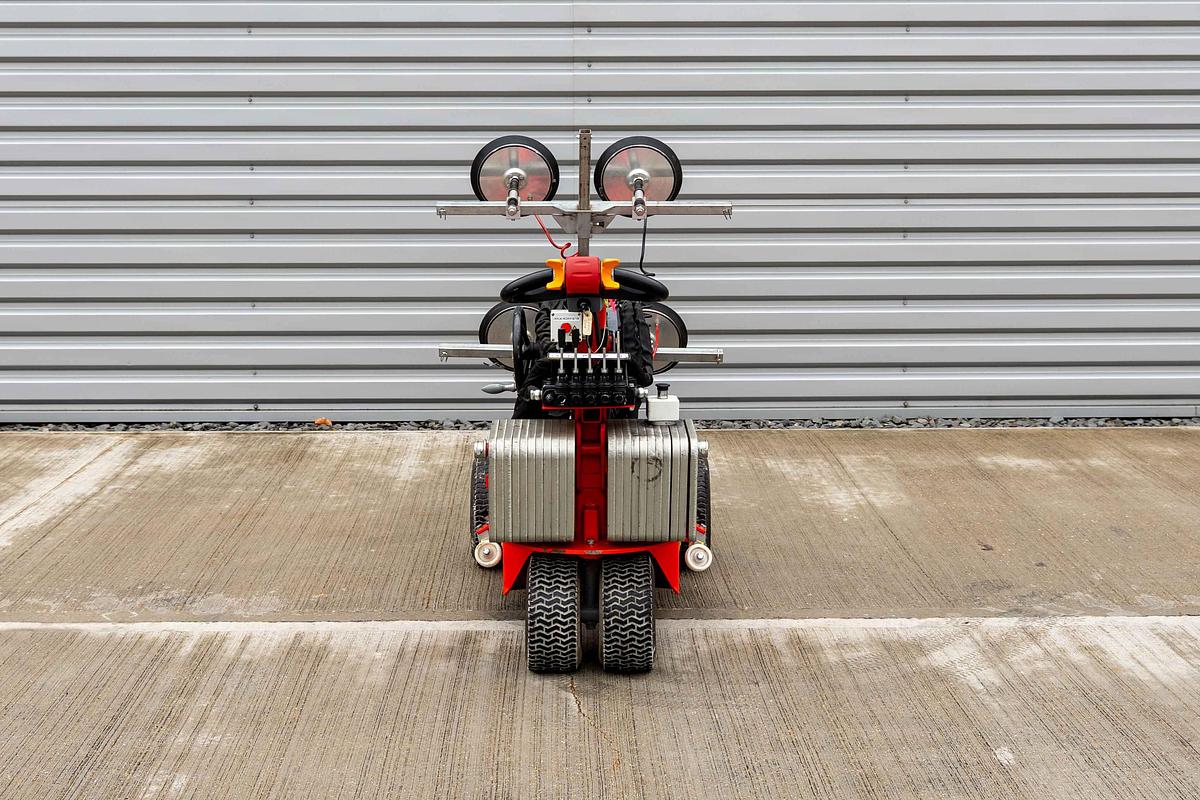

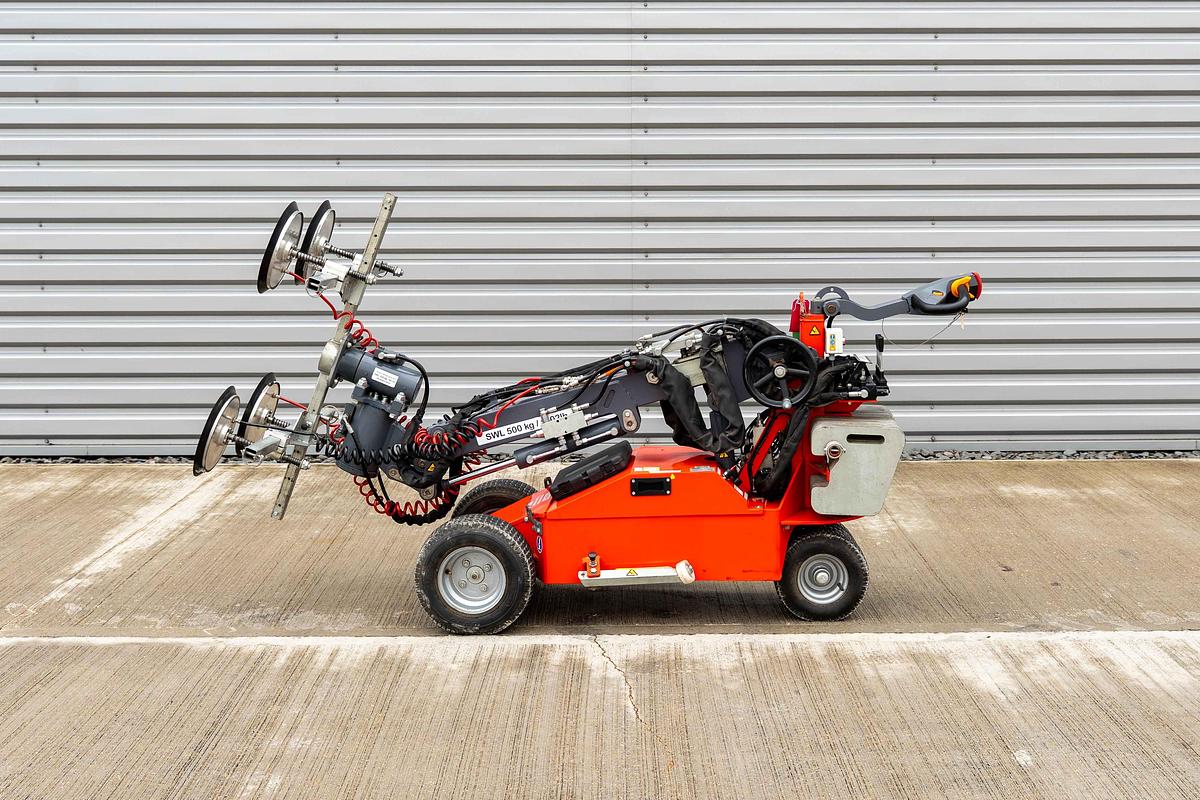

The Geko 500 3D glass lifter is a versatile glazing robot designed for lifting and installing glass, marble, steel and other panel materials in tight or hard-to-access spaces.
As a battery-powered glass manipulator, it features a hydraulically operated 3D head that provides precise and controlled load positioning. The unit delivers 180° powered rotation, a 90° tilt function for vertical movement, a manual boom slew of 22° to the left and right, and a powered head with 90° slew capability in both directions. With a maximum lifting height of 2.9 metres, the Geko 500 is highly effective for picking loads from ground level and positioning them at any angle required for accurate installation.
Fitted with pneumatic rubber tyres, it can travel safely over uneven or rough terrain, while the powered side-shift function allows for fine adjustment during delicate glazing operations. This used glazing robot is ideal for a wide range of applications, including canopy glazing, curtain wall installation and internal or external glass fitting, making it a practical alternative to larger cranes or traditional manual handling methods.
Specifications
Model | Geko 500 3D Head |
Year | 2020 |
Condition | Used |
Serial Number | 20/1201 |
Stock Number | 20/1201 |
Capacity | 500kg |
Application | Lifting |
